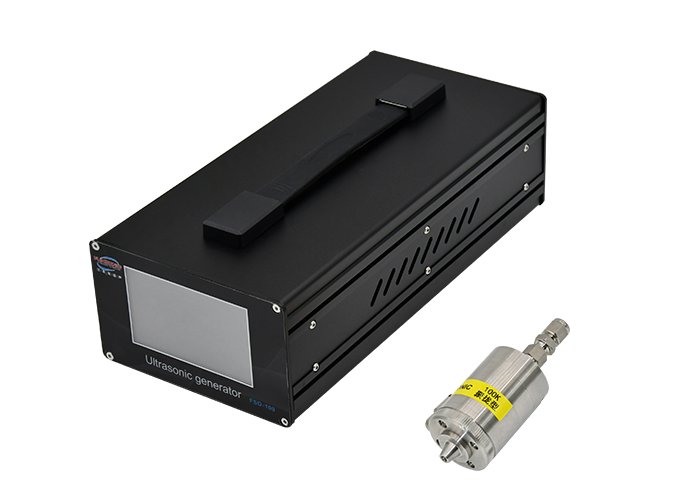

Arterial Network Balloon Spray Ultrasonic Precision Gathering Type Coating

Name: Arterial Network Balloon Spray Ultrasonic Precision Gathering Type Coating
Brand: FUNSONIC
Price: 1 USD

China Arterial Network Balloon Spray Ultrasonic Precision Gathering Type Coating wholesale

Brand Name : FUNSONIC

Model Number : FS1005

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Payment Terms : T/T,Western Union

Supply Ability : 1000 unit per month

Packaging Details : Packed by Wooden Case

Production Name : Balloon Catheter Ultrasonic Precision Spraying Machine

Frequency : 100Khz (120khz or 150khz for select)

Max Power : 10w

Continuous Spraying Volume Max : 0.01-l/min

Effective Spraying Width : 1-5mm

Spray Uniformity : <5%

Solution Viscosity : ≤10cps

Input Voltage : 220V±10%/50-60Hz

Contact Now

Arterial Network Balloon Spray Ultrasonic Precision Gathering Type Coating

Description:

Arterial balloon angioplasty, which involves implanting stents into arteries, is a widely accepted technique in the treatment of arterial diseases. In order to prevent the stent from being attacked by the human immune system and causing arterial occlusion again, the surface of the stent needs to be sprayed. The balloon catheter spray developed by FUNSONIC uses both line spray and convergent atomizing nozzles, which can generate extremely low flow rates, precise spray shapes, low-speed delivery, and relatively small droplets. By placing the balloon catheter on the spindle connected to the rotating shaft, and installing the nozzle above the balloon catheter. The axis can not only rotate but also translate, allowing the balloon catheter to be fully sprayed.

Parameters:

Product Type	Laboratory desktop FS620	Pilot type vertical FS650	Online production type FS680	FS1005
Spray nozzle operating frequency	20-200KHz			100KHz (120KHz或150KHz for select)
Nozzle power	10-100W			2~ 10W
Continuous spraying volume max	20-1200ml/h/pcs,Scalable			0.01-l/min
Effective spraying width	2-260mm/pcs,Scalable			1-5mm
Spray uniformity	<5%			<5%
Solution conversion rate	≥95%			≥95%
Dry film thickness	20nm-100μm			20nm-1μm
Solution viscosity	≤50cps			≤10cps
temperature range	1-60℃			1-60℃
Atomized particles (median value)	10-45μm (Distilled water), determined by the frequency of the nozzle			10-25μm(Distilled water), determined by the frequency of the nozzle
Diversion pressure max	≤0.15MPA			≤0.05MPa
input voltage	220V±10%/50-60Hz			220V±10%/50-60Hz

Production Process:

1. Cleaning and preparation: Clean the balloon catheter before spraying to ensure that the surface is free of contamination.
2. Spraying process: Spraying is carried out in a controlled environment to reduce the impact of external factors on the quality of the coating.
3. Curing and testing: After spraying, perform curing treatment and necessary performance testing.
